Glossary - Get Term Types
Description
This custom step extracts all term types, the term type attributes and, if available, the items you can choose from, for a given term type attribute.
The custom steps outputs 3 tables:
- A table with the focus on term type and its properties.
- A table with the term type attributes
- A table with the possible values an end-user can choose from for term type attributes of type 'single-select'.
For more details, see below.
SAS Viya version support
This custom step is created and tested in Viya 4, Stable 2025.08
User interface

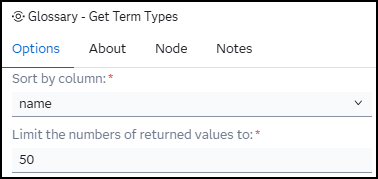

Tab: Options
- Sort by column:: The column you select here will be used to sort the resulting table by. By dedault, the resulting table will be sorted based on the term type name.
- Limit the number of returned values to: Here you can limit the number of returned value. Note that the minimum value is 10 and the default value is 50.

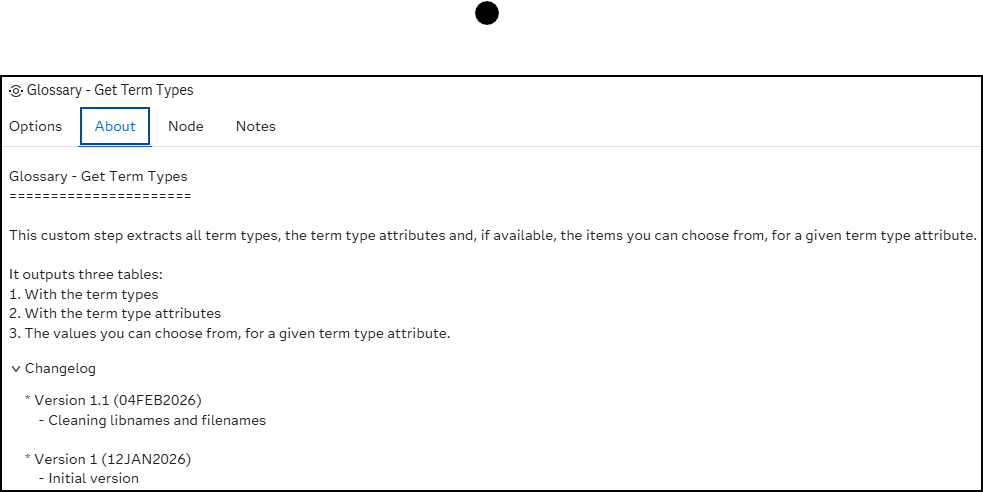

Tab: About
Usage
Download the .step file, upload it into your environment and start using it. The custom step generates three output tables.

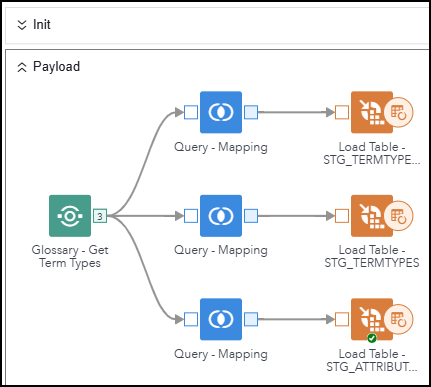

Example flow:
Output table 1 (_output1)
Contains information on the term type and its properties.
| # | Column | Type | Comment |
|---|---|---|---|
| 1 | termTypeId | char(36) | The primary key for the term type. |
| 2 | version | integer | |
| 3 | name | char(512) | |
| 4 | label | char(512) | |
| 5 | description | char(1024) | |
| 6 | usageCount | integer | Contains the number of terms for this term type. |
| 7 | attributeCount | integer | Contains the number of term type attributes |
| 8 | creationTimeStamp | datetime22.3 | |
| 9 | modifiedTimeStamp | datetime22.3 | |
| 10 | createdBy | char(64) | |
| 11 | modifiedBy | char(64) |
Output table 2 (_output2)
Contains, for each term type, the term type attributes and its properties.
| # | Column | Type | Comment |
|---|---|---|---|
| 1 | termTypeId | char(36) | The foreign key for the term type. |
| 2 | attributeId | char(36) | The primary key for the attribute. |
| 3 | name | char(36) | |
| 4 | description | char(1024) | |
| 5 | type | char(32) | |
| 6 | required | integer | Is empty (=.) in case of No, 1 for Yes. |
| 7 | defaultValue | char(32) | Contains the default value for the given term type attribute. |
Output table 3 (_output3)
Contains the possible values an end-user can choose from, when creating a term for the given term type and filling in a value for this given term type attribute(s).
| # | Column | Type | Comment |
|---|---|---|---|
| 1 | attributeId | char(36) | The foreign key for the attribute. |
| 2 | value | char(32) | Contains the/a value an end-user can choose from. |
Custom step messages
| # | Step message | Reason | Result |
|---|---|---|---|
| 1 | ERROR: Please select a location on the SAS Server. SAS Content folders are not supported by this custom step | The custom step only supports physical locations on the SAS compute environment | No export has been created. |
| 2 | ERROR: No response file received for macro 'getTermTypes'. Please review the log for more details. | A REST API call to the 'termTypes' endpoint was unsuccessful. | There's no response file available. The custom step is not able to continue for the specified Id. The resulting table might be not complete. |
| 3 | ERROR: No response file received for macro 'getTermTypeById'. Please review the log for more details. | A REST API call to the 'termTypes' endpoint was unsuccessful. | There's no response file available. The custom step is not able to continue for the specified Id. The resulting table might be not complete. |
Change log
-
Version 1.1 (04FEB2026)
- Cleaning libnames and filenames
-
Version 1.0 (16JAN2025)
- Initial version.
